Wenzhou Kinee Electrical Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm ib tug - ncej over/under voltage nyob rau hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale ib qho - ncej tshaj / hauv qab voltage muag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Khoom Taw Qhia

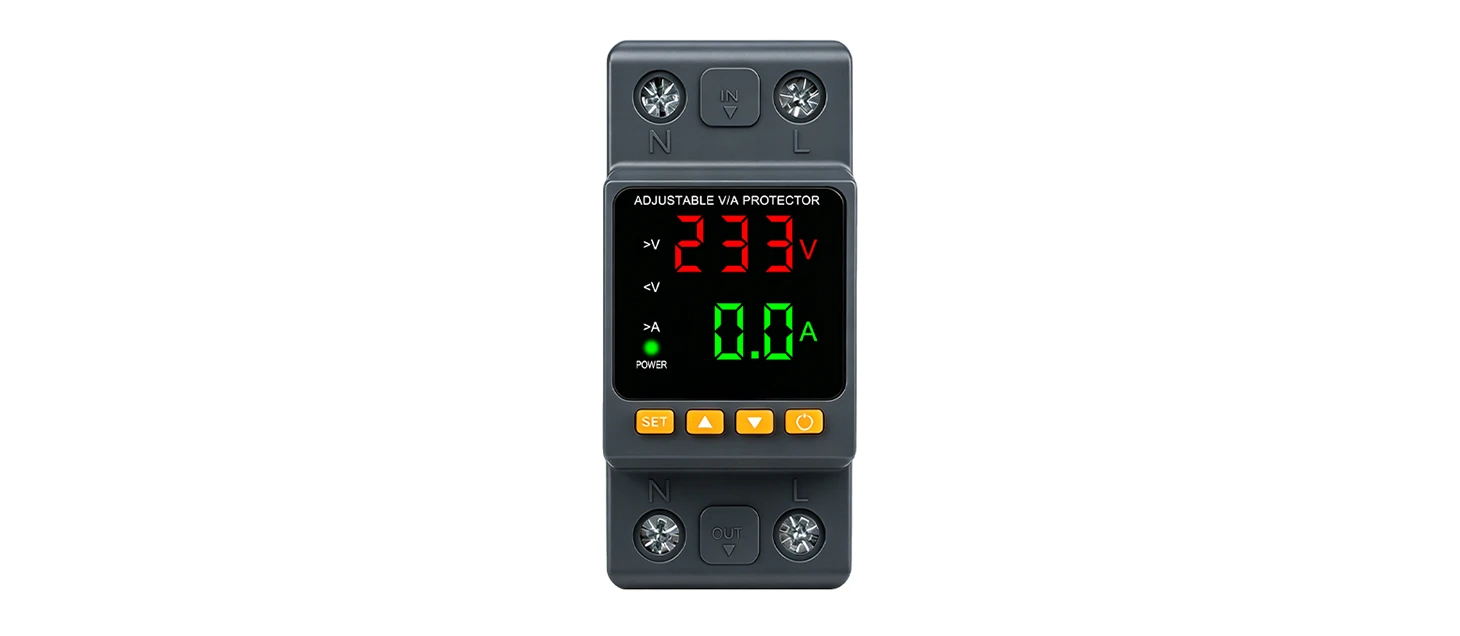

Qhov ib zaug - tawg (1P + N) tus kheej- rov pib dua / hauv qab qhov hluav taws xob tiv thaiv yog tsim los rau ib zaug -theem 220V circuits, txiav tawm tsuas yog cov xaim nyob thiab ua kom cov xaim nruab nrab txuas ncaj qha. Nws yog compact thiab yooj yim rau nruab. Nws muab kev tiv thaiv sai sai thaum qhov hluav taws xob ntau tshaj 165 ~ 275V, thiab rov pib dua tom qab ncua sij hawm thaum qhov hluav taws xob rov qab mus rau qhov qub, tiv thaiv kev puas tsuaj rau cov khoom siv hluav taws xob vim qhov txawv txav tsis zoo. Nws yog resistant rau instantaneous voltage fluctuations, tsis tshua muaj malfunction, thiab muaj nqi siab -effectiveness. Nws yog dav siv nyob rau hauv tsev neeg thiab dav ib leeg -theem fais fab faib scenarios.
Technical Parameters
|
Parameter |
Specification |
|
Cov khoom siv terminals |
N,L |
|
Rated mov voltage |
AC 220V; DC 80-300V |
|
Rated zaus |
40/50/60/70Hz |
|
>U teeb qhov ntau |
AC130-300V; DC 130-300V |
|
< U setting range |
AC80-210V; DC80-210V |
|
Voltage hysteresis |
5V |
|
Overvoltage mus txawv tebchaws qeeb |
0.5s |
|
Voltage raug |
<1% |
|
Max. kev khiav hauj lwm theem voltage |
350V |
|
Max. kev khiav hauj lwm tam sim no |
40A/63A |
|
Qhov siab |
Tsawg dua los yog sib npaug li 2000m |
|
Ambient kub |
-25℃~ +50 degree |
|
Tso cai txheeb ze humidity |
Tsawg dua lossis sib npaug li 50% ntawm 40℃(tsis muaj condensation) |
|
Cia kub |
-25℃~ +55 degree |
|
Loj |
85 * 36 * 66mm |
Video
Lus nug thiab lus teb
Q: Thaum twg kuv tuaj yeem cia siab tias yuav tau txais cov lus qhia thiab cov ncauj lus kom ntxaws tom qab xa cov lus nug?
A: Cov lus teb yuav raug xa hauv 24 teev.
Q: Dab tsi ua rau koj txawv ntawm lwm tus neeg muag khoom?
A: Peb muaj ntau yam khoom siv hluav taws xob thiab tuaj yeem kho cov khoom kom tau raws li koj cov kev xav tau tshwj xeeb.
Q: Koj puas muab cov qauv? Puas yog lawv pub dawb lossis ntxiv?
A: Yog, peb tuaj yeem muab cov qauv dawb, tab sis peb yuav tsis them tus nqi thauj khoom.
Q: Kuv puas tuaj yeem tau txais ib qho qauv rau kev kuaj ua ntej muab xaj?
A: Tau kawg!
Q: Kev xa khoom zoo li cas? Kuv xav tau lawv sai heev!
A: Cov qauv xav tau 5-7 hnub. Kev txiav txim ntau yuav tsum tau 12-15 hnub.
Cim npe nrov: ib leeg-ncej dhau/hauv voltage, Tuam Tshoj ib leeg-ncej tshaj/hauv voltage manufacturers, lwm tus neeg, hoobkas
