Wenzhou Kinee Electrical Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm hluav taws xob ac contactor tag nrho - tooj liab coil nyob Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale hluav taws xob ac contactor tag nrho - tooj liab coil muag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Khoom Taw Qhia

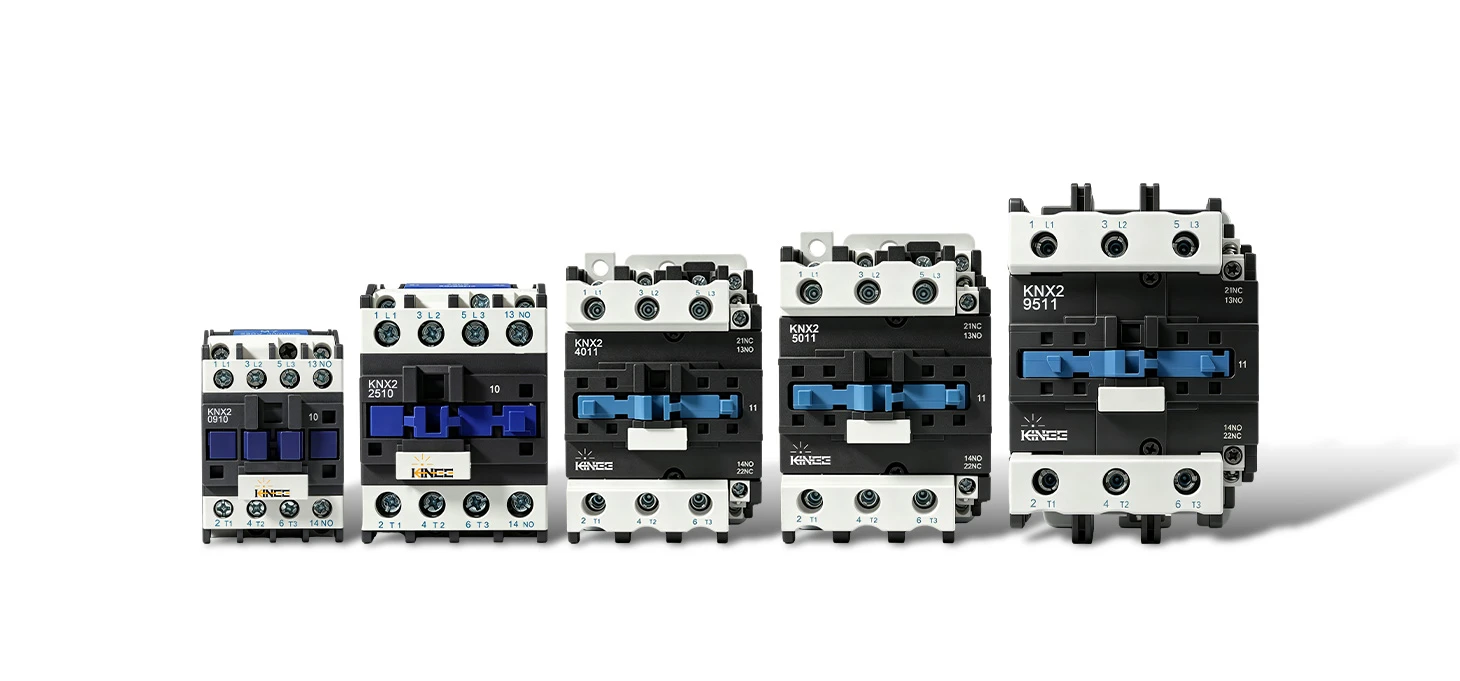

KINEE KNX2 series Hluav Taws Xob AC Contactor Txhua - tooj liab coil AC contactors muaj qhov zoo li tshiab thiab cov qauv tsim. Lawv feem ntau yog siv rau nquag pib thiab tswj ntawm AC motors, tej thaj chaw deb kev twb kev txuas thiab disconnection ntawm circuits, thiab yuav ua ke nrog tsim nyog thermal overload relays, nrog rau hluav taws xob AC Contactor Tag nrho cov - tooj liab coil, los tsim electromagnetic starters.
Cov Hluav Taws Xob AC Contactor Txhua - tooj liab coil ua kom ntseeg tau tias kev ua haujlwm ruaj khov thiab ua haujlwm ntev. Ua raws li cov qauv: IEC 60947-1, IEC 60947-4-1, Hluav taws xob AC Contactor All-copper coil.
Technical Parameters
|
Yam khoom |
KNX2-09(Z) |
KNX 2-12 (Z) |
KNX 2-18 (Z) |
KNX 2-25 (Z) |
KNX 2-32 (Z) |
||
|
Ncej qiba |
09~12 |
18 |
25 |
32 |
|||
|
Rated Impulse Nrog Voltage Uimp (kV) |
8 |
||||||
|
Rated Lub Luag Haujlwm |
Yim-teev hnub ua haujlwm, hnub ua haujlwm tas mus li, luv- hnub ua haujlwm, hnub ua haujlwm tsis sib xws (load factor 40%) |
||||||
|
Rated txwv luv-Circuit Current Iq (kA) |
50 (400V) |
||||||
|
Arcing nrug (mm) |
10 |
||||||
|
Kev txwv impedance (Ω) |
0.05 |
||||||
|
Sib piv Fuse Hom |
gg 20 |
g32 ua |
g40 ua |
gg 50 |
|||
|
Matching Fuse Rated Tam sim no (A) |
20 |
32 |
40 |
50 |
|||
|
Hom kev sib koom tes |
Hom "2" kev sib koom ua ke |
||||||
|
Sib piv thermal overload relay qauv |
NR2-25 |
NR2-25, 36 |
|||||
|
Kev pab cuam Circuit Court parameter |
Ib (A) |
10 |
|||||
|
AC-15 |
Ue/Ie: AC380V/400V/0.95A |
||||||
|
DC-13 |
Lub hwj chim: DC 220V / 250V / 0.15A |
||||||
|
Qhov siab (kV) |
6 |
||||||
|
Hom fuse siv nyob rau hauv lub auxiliary Circuit Court |
gg 10 |
||||||
|
AC coil |
50 Hz |
Pick-up (VA) |
Tsawg dua los yog sib npaug li 70 |
Tsawg dua los yog sib npaug li 70 |
Tsawg dua los yog sib npaug li 70 |
Tsawg dua los yog sib npaug li 110 |
Tsawg dua los yog sib npaug li 110 |
|
Hold (VA) |
Tsawg dua los yog sib npaug li 9 |
Tsawg dua los yog sib npaug li 9 |
Tsawg dua lossis sib npaug li 9.5 |
Tsawg dua los yog sib npaug li 14 |
Tsawg dua los yog sib npaug li 14 |
||
|
Lub zog (W) |
1.8~2.7 |
1.8~2.7 |
3~4 |
3~4 |
3~4 |
||
|
DC coil |
Lub zog (W) |
Tsawg dua los yog sib npaug li 9 |
Tsawg dua los yog sib npaug li 9 |
Tsawg dua los yog sib npaug 11 |
Tsawg dua los yog sib npaug 11 |
Tsawg dua los yog sib npaug 11 |
|
|
Tswj lub voj Uimp (kV) |
6 |
||||||
|
Ntau yam ntawm kev txav |
Rub-hauv qhov hluav taws xob: (85% ~ 110%) Peb; Tawm voltage: AC (20% ~ 75%) Peb, DC (10% ~ 75%) Peb |
||||||
|
Yam khoom |
KNX 2-40 (Z) |
KNX 2-50 (Z) |
KNX 2-65 (Z) |
KNX 2-80 (Z) |
KNX 2-95 (Z) |
||
|
Ncej qiba |
40~65 |
80~95 |
|||||
|
Rated Impulse Nrog Voltage Uimp (kV) |
8 |
||||||
|
Rated Lub Luag Haujlwm |
Yim-teev hnub ua haujlwm, hnub ua haujlwm tas mus li, luv- hnub ua haujlwm, hnub ua haujlwm tsis sib xws (load factor 40%) |
||||||
|
Rated txwv luv-Circuit Current Iq (kA) |
50 (400V) |
||||||
|
Arcing nrug (mm) |
12 |
||||||
|
Kev txwv impedance (Ω) |
0.05 |
||||||
|
Sib piv Fuse Hom |
g63 ua |
g80 ua |
g125 ua |
||||
|
Matching Fuse Rated Tam sim no (A) |
63 |
80 |
125 |
||||
|
Hom kev sib koom tes |
Hom "2" kev sib koom ua ke |
||||||
|
Sib piv thermal overload relay qauv |
NR2-93 |
||||||
|
Kev pab cuam Circuit Court parameter |
Ib (A) |
10 |
|||||
|
AC-15 |
Ue/Ie: AC380V/400V/0.95A |
||||||
|
DC-13 |
Lub hwj chim: DC 220V / 250V / 0.15A |
||||||
|
Qhov siab (kV) |
6 |
||||||
|
Hom fuse siv nyob rau hauv lub auxiliary Circuit Court |
gg 10 |
||||||
|
AC coil |
50 Hz |
Pick-up (VA) |
Tsawg dua los yog sib npaug li 300 |
Tsawg dua los yog sib npaug li 300 |
Tsawg dua los yog sib npaug li 300 |
Tsawg dua los yog sib npaug li 300 |
Tsawg dua los yog sib npaug li 300 |
|
Hold (VA) |
Tsawg dua los yog sib npaug li 45 |
Tsawg dua los yog sib npaug li 45 |
Tsawg dua los yog sib npaug li 45 |
Tsawg dua lossis sib npaug li 57 |
Tsawg dua lossis sib npaug li 57 |
||
|
Lub zog (W) |
6~10 |
6~10 |
6~10 |
6~10 |
6~10 |
||
|
DC coil |
Lub zog (W) |
Tsawg dua los yog sib npaug 22 |
Tsawg dua los yog sib npaug 22 |
Tsawg dua los yog sib npaug 22 |
Tsawg dua los yog sib npaug 22 |
Tsawg dua los yog sib npaug 22 |
|
|
Tswj lub voj Uimp (kV) |
6 |
||||||
|
Ntau yam ntawm kev txav |
Rub-hauv qhov hluav taws xob: (85% ~ 110%) Peb; Tawm voltage: AC (20% ~ 75%) Peb, DC (10% ~ 75%) Peb |
||||||
"a" Contactors ntawm tib lub thav duab hauv chav kawm xa mus rau cov contactors nrog tib lub qhov ntev thiab sab hauv, tsuas yog qee qhov sib txawv ntawm qhov ntev, tab sis sib txawv ntsuas kev khiav hauj lwm tam sim no; Piv txwv li, KNX2-40 thiab KNX2-65 yog contactors ntawm tib chav kawm ntawv (40 ~ 65).
