Wenzhou Kinee Electrical Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm multifunctional contactor ac magnetic contactor nyob rau hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale multifunctional contactor ac magnetic contactor rau muag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Khoom Taw Qhia

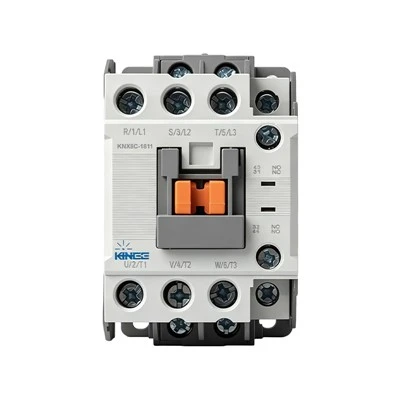

KNX8GN series AC contactor yog Multifunctional Contactor AC Sib Nqus Contactor tsim rau circuits siv qhov ntsuas hluav taws xob ntawm 660V AC 50/60Hz thiab ntsuas tam sim no txog 85A, tsim nyog rau kev tsim khoom, tawg, nquag pib, thiab tswj ntawm AC motors. Raws li Multifunctional Contactor AC Sib Nqus Contactor, nws tuaj yeem ua ke nrog kev tiv thaiv kev tiv thaiv, lub sijhawm qeeb, thiab cov khoom siv sib txuas ua ke kom dhau los ua lub sijhawm - ncua sijhawm contactor, tus neeg saib xyuas kev sib txuas, thiab lub hnub qub -delta starter. Nrog lub thermal relay, qhov Multifunctional Contactor AC Magnetic Contactor tuaj yeem muab tso rau hauv lub tshuab hluav taws xob hluav taws xob. Tsis tas li ntawd, KNX8GN series ua raws li IEC60947-1 tus qauv, ua kom ntseeg tau kev ua tau zoo raws li Multifunctional Contactor AC Sib Nqus Contactor hauv ntau daim ntawv thov kev lag luam.
Technical Parameters
|
Hom |
KNX8GN-9 |
KNX8GN-12 |
KNX8GN-18 |
KNX8GN-22 |
KNX8GN-32 |
||
|
Siv tau rau qeb AC1 lub luag haujlwm |
20A |
20A |
25A |
32A |
50A |
||
|
Siv tau rau qeb AC3 lub luag haujlwm |
200-240V |
2.5 kW/11A |
3.5kW/13A |
4.5 kW/18A |
5.5 kW/22A |
7.5kW/32A |
|
|
380-440V |
4 kW/9A |
5.5kW/12A |
7.5kW/18A |
11 kW/22A |
15 kW/32A |
||
|
500-550V |
4 kW/7A |
7.5 kW/12A |
7.5kW/13A |
15 kW/22A |
18.5 kW/28A |
||
|
690V |
4 kW/5A |
7.5 kW/9A |
7.5 kW/9A |
15 kW/18A |
18.5kW/21A |
||
|
Nruam Tam sim no Ith |
20A |
25A |
30A |
32A |
45A |
||
|
AC lub cev muaj zog |
Ib Theem |
115V |
0.5hp ib |
0.5hp ib |
1 HP |
2HP ib |
2HP ib |
|
230V |
1 HP |
2HP ib |
3HP ib |
3HP ib |
5HP ib |
||
|
Peb theem |
200V |
2HP ib |
3HP ib |
5HP ib |
7hp ib |
7.5hp ib |
|
|
230V |
3HP ib |
3HP ib |
5HP ib |
7.5hp ib |
10 HP |
||
|
460V |
2HP ib |
7.5hp ib |
10 HP |
10 HP |
20HP ib |
||
|
575V |
5HP ib |
10 HP |
15 hp cas |
15 hp cas |
20HP ib |
||
|
Hom |
KNX8GN-40 |
KNX8GN-50 |
KNX8GN-65 |
KNX8GN-75 |
KNX8GN-85 |
||
|
Siv tau rau qeb AC1 lub luag haujlwm |
60A |
80A |
100A |
110A |
135A |
||
|
Siv tau rau qeb AC3 lub luag haujlwm |
200-240V |
11 kW40A |
15 KW 55A |
18.5 kW 65 A |
22 kWm 75a |
25 kW85a |
|
|
380-440V |
18.5 kW 40A |
22 kW 50A |
30 kWm 65a |
37kW75a ua |
45kW 85A |
||
|
500-550V |
22 kWm 32A |
30 kWm 43a |
37 kWm 60a |
45 kWm 64 a |
45 kW 75A |
||
|
690V |
22 kWm 25A |
30 kWm 33a |
37 kWm 47a |
45kW 47A |
45 kWm 52 a |
||
|
Nruam Tam sim no Ith |
50A |
70A |
80A |
90A |
100A |
||
|
AC lub cev muaj zog |
Ib Theem |
115V |
3HP ib |
3HP ib |
5HP ib |
5HP ib |
7.5hp ib |
|
230V |
5HP ib |
7.5hp ib |
10 HP |
15 hp cas |
15 hp cas |
||
|
Peb theem |
200V |
10 HP |
10 HP |
15 hp cas |
20HP ib |
25 hp cas |
|
|
230V |
10 HP |
15 hp cas |
20HP ib |
25 hp cas |
30 hp cas |
||
|
460V |
25 hp cas |
30 hp cas |
40 hp cas |
50HP ib |
50HP ib |
||
|
575V |
25 hp cas |
30 hp cas |
40 hp cas |
50HP ib |
50HP ib |
||
Cim npe nrov: Tuam Tshoj multifunctional contactor ac magnetic contactor manufacturers, lwm tus neeg, Hoobkas
