Wenzhou Kinee Electrical Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm ac magnetothermal overload relay nyob rau hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale ac magnetothermal overload relay rau muag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Khoom Taw Qhia

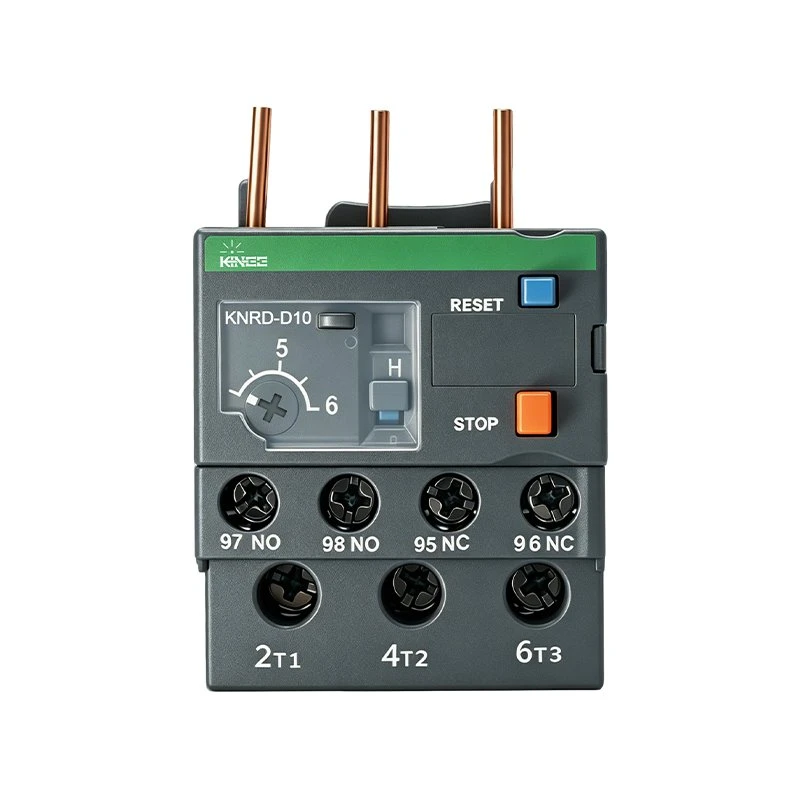

KNRD-D series thermal overload relay yog siv rau AC 50 lossis 60Hz, voltage mus txog 660V, tam sim no mus txog 80A thiab hauv qab circuits, rau kev tiv thaiv thermal ntawm AC motors. Tsim los ua qhov siab -kev ua tau zoo AC Magnetothermal Overload Relay, nws ua kom ntseeg tau ntau dhau thiab theem- kev tiv thaiv tsis ua haujlwm txawm tias nyob rau hauv qhov hloov pauv ntawm ib puag ncig. Tsis zoo li cov qauv ua qauv, qhov AC Magnetothermal Overload Relay no muaj qhov ua tau zoo - nyob rau hauv cov txheej txheem sib txawv thiab qhov kub thiab txias qhov chaw ib puag ncig, uas ua rau muaj txiaj ntsig zoo dua qub thiab txo qis kev mus ncig tsis zoo hauv qhov sib txawv - qhov kub thiab txias kev lag luam.
Qhov AC Magnetothermal Overload Relay no tuaj yeem raug ncaj qha nrog KNX2 (KNX2-DN) AC contactor tshiab, muab cov kev sib cog lus sib txuas thiab sib hloov tau rau kev sib txuas ntawm lub cev muaj zog. Tsis tas li ntawd, KNRD-D series ua haujlwm ntau yam AC Magnetothermal Overload Relay uas txhawb nqa ob qho tib si phau ntawv thiab tsis siv neeg rov pib dua hom, ua rau nws tsim nyog rau ntau yam kev siv conveyor, twj, thiab compressor.
Ua raws li cov qauv xws li GB / T14048.4, GB / T14048.5, IEC60947-4, VDE0660, thiab lwm yam.
Parameter Table 1
|
Qauv |
KNRD-D series |
|
Qhov hluav taws xob |
mus txog 660V |
|
Tam sim no |
mus txog 80A thiab hauv qab circuits |
|
Ntau zaus |
AC 50 lossis 60Hz |
|
Muaj nuj nqi |
thermal tiv thaiv ntawm AC motors |
Parameter Table 2
|
Kev teeb tsa tam sim no |
0.1-0.16A-48-65A |
|
Tripping Class |
10,10A |
|
Matched Contactor |
KNX 2-H |
|
Steandard |
TS EN 60947-4-1, IEC / EN 60947-5-1 |
|
Daim ntawv pov thawj |
CE |
Parameter Table 3
|
Khoom npe |
Rated tam sim no |
Kev teeb tsa tam sim no |
|
KNRD-D |
25 |
1P6 |
|
↓ |
↓ |
|
|
25:25A |
1P6: 1.0-1.6A |
|
|
65:65A |
P16: 0.1-0.16A |
|
|
3 ua:65a |
... |
|
|
65:48-65A |
||
|
P txhais tau tias decimal point |
Xaiv thiab Parameters
|
Qauv |
Tus lej |
Rated tam sim no ntau yam |
Contactors uas yuav tsum tau ntxig thiab ntsia |
|
KNRD-D13 |
1301 |
0.1~0.16 |
D09~D32 |
|
1302 |
0.16~0.25 |
D09~D32 |
|
|
1303 |
0.25~0.4 |
D09~D32 |
|
|
1304 |
0.4~0.63 |
D09~D32 |
|
|
1305 |
0.63~1 |
D09~D32 |
|
|
1306 |
1~1.6 |
D09~D32 |
|
|
1307 |
1.6~2.5 |
D09~D32 |
|
|
1308 |
2.5~4 |
D09~D32 |
|
|
1310 |
4~6 |
D09~D32 |
|
|
1312 |
5.5~8 |
D09~D32 |
|
|
1314 |
7~10 |
D09~D32 |
|
|
1316 |
9~13 |
D09~D32 |
|
|
1321 |
12~18 |
D09~D32 |
|
|
1322 |
16~24 |
D25/32 |
|
|
KNRD-D33**/3** |
3322 /325 |
17~25 |
D40~D65 |
|
3353 /332 |
23~32 |
D40~D65 |
|
|
3355 /340 |
30~40 |
D40~D65 |
|
|
3357 /350 |
37~50 |
D50~D65 |
|
|
3359 /365 |
48~65 |
D50~D65 |
